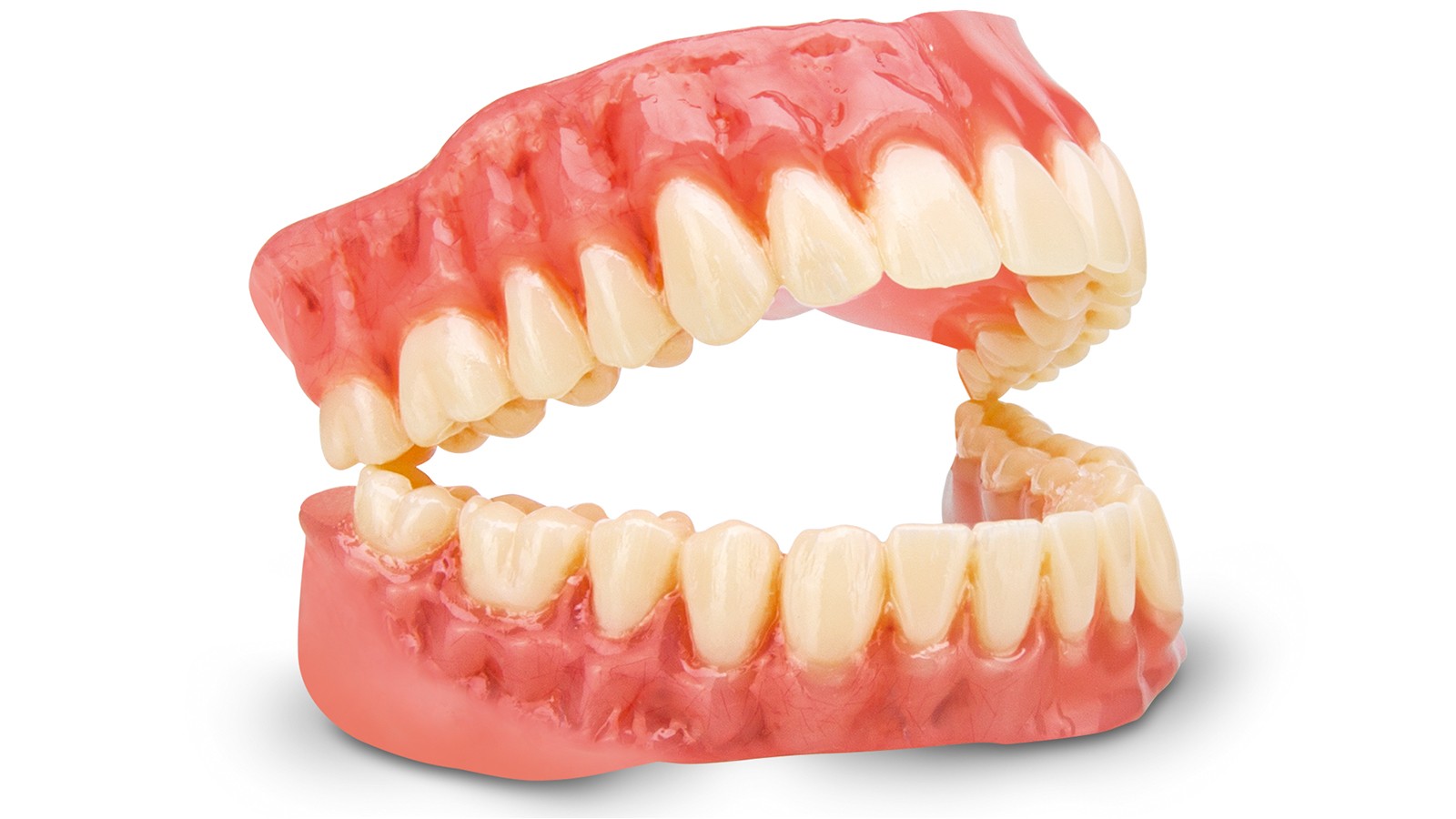

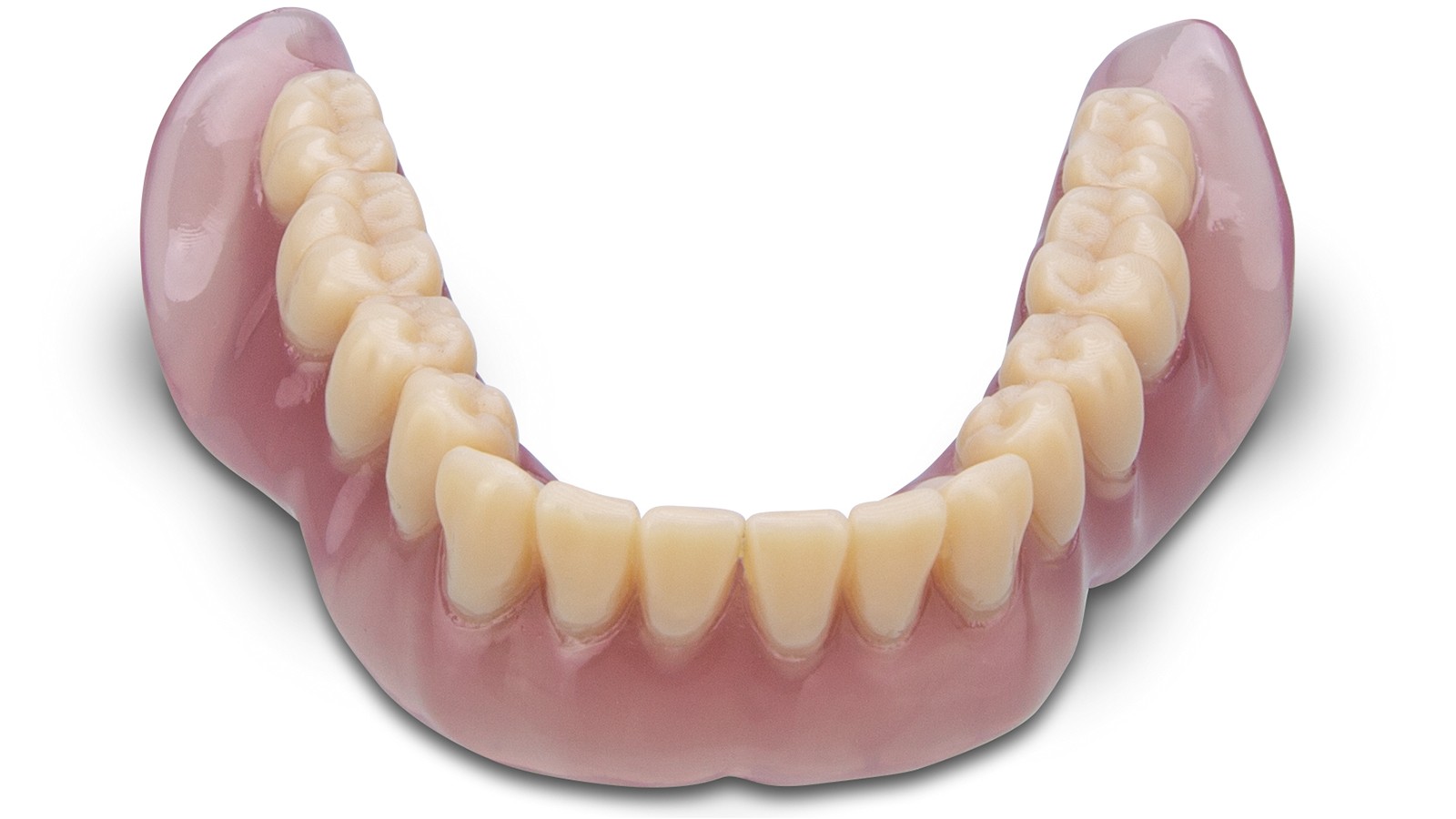

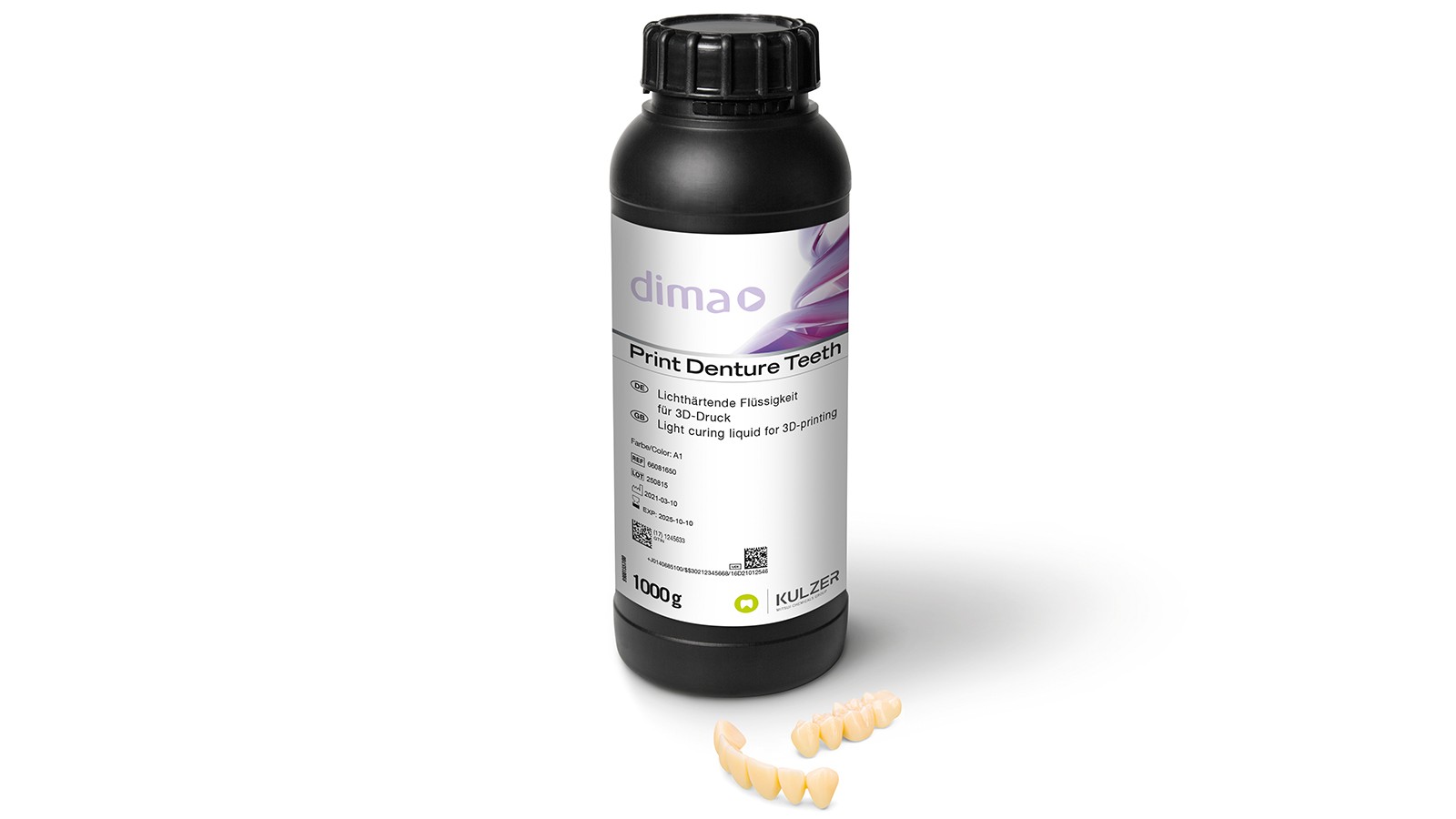

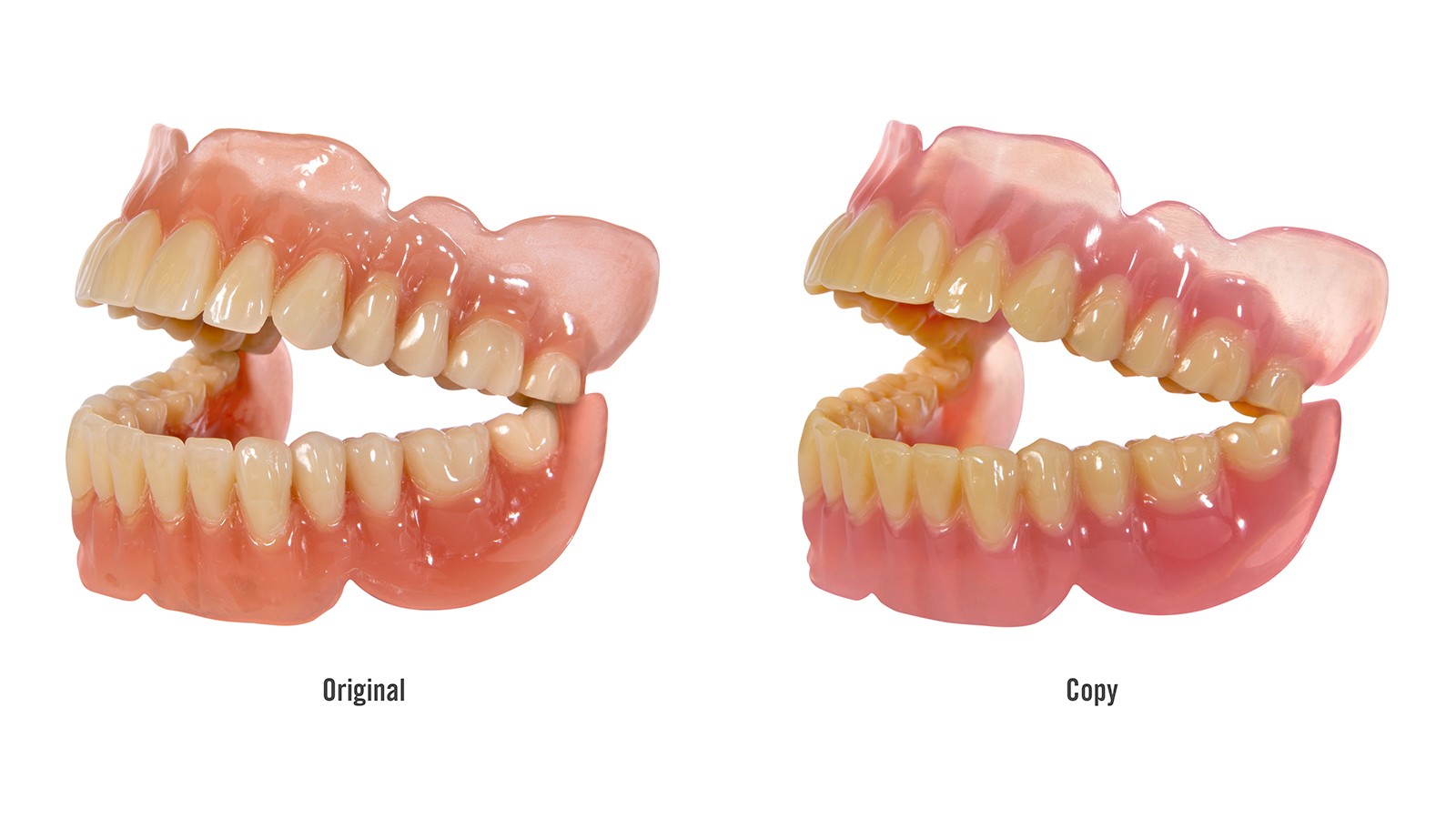

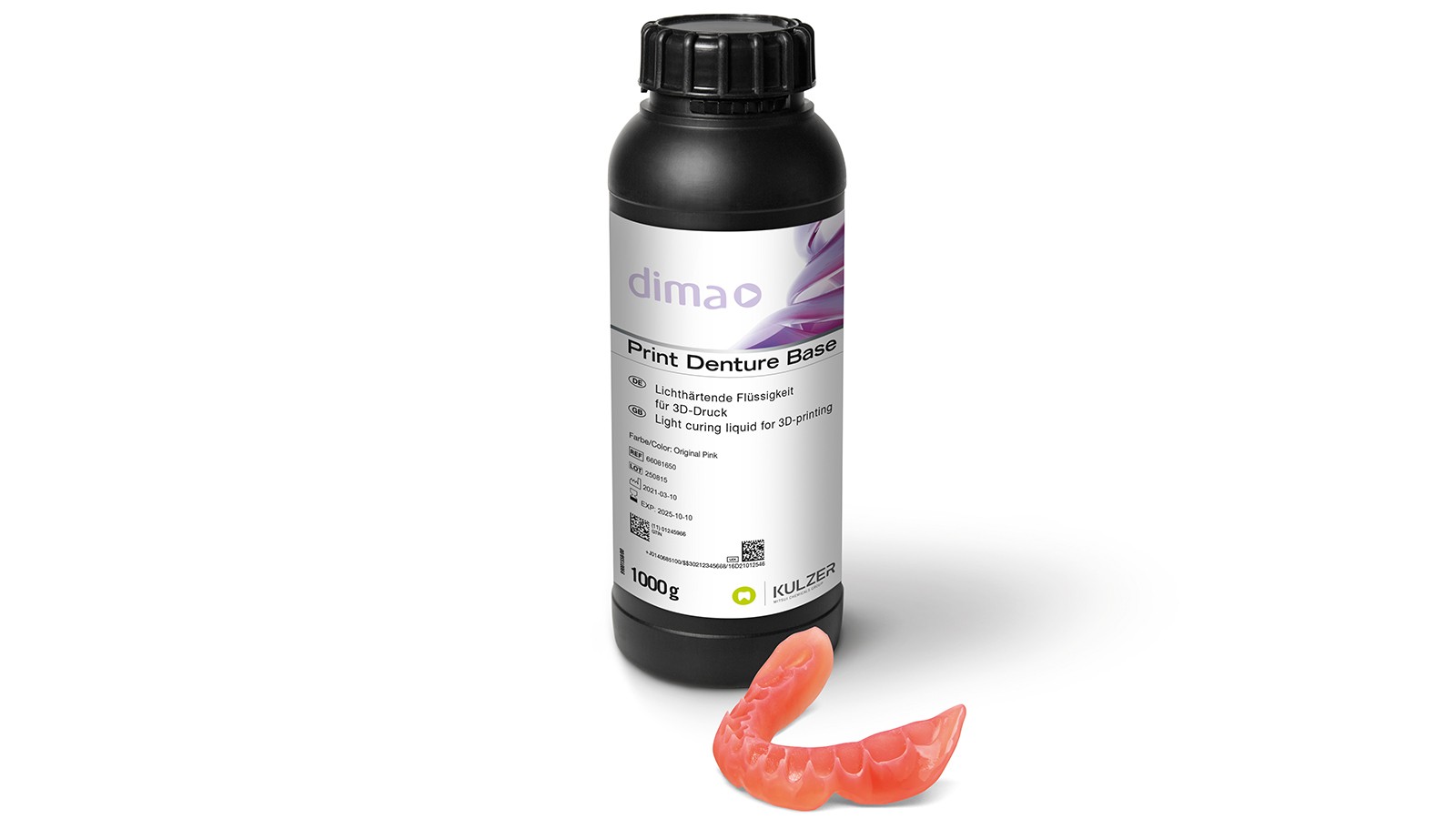

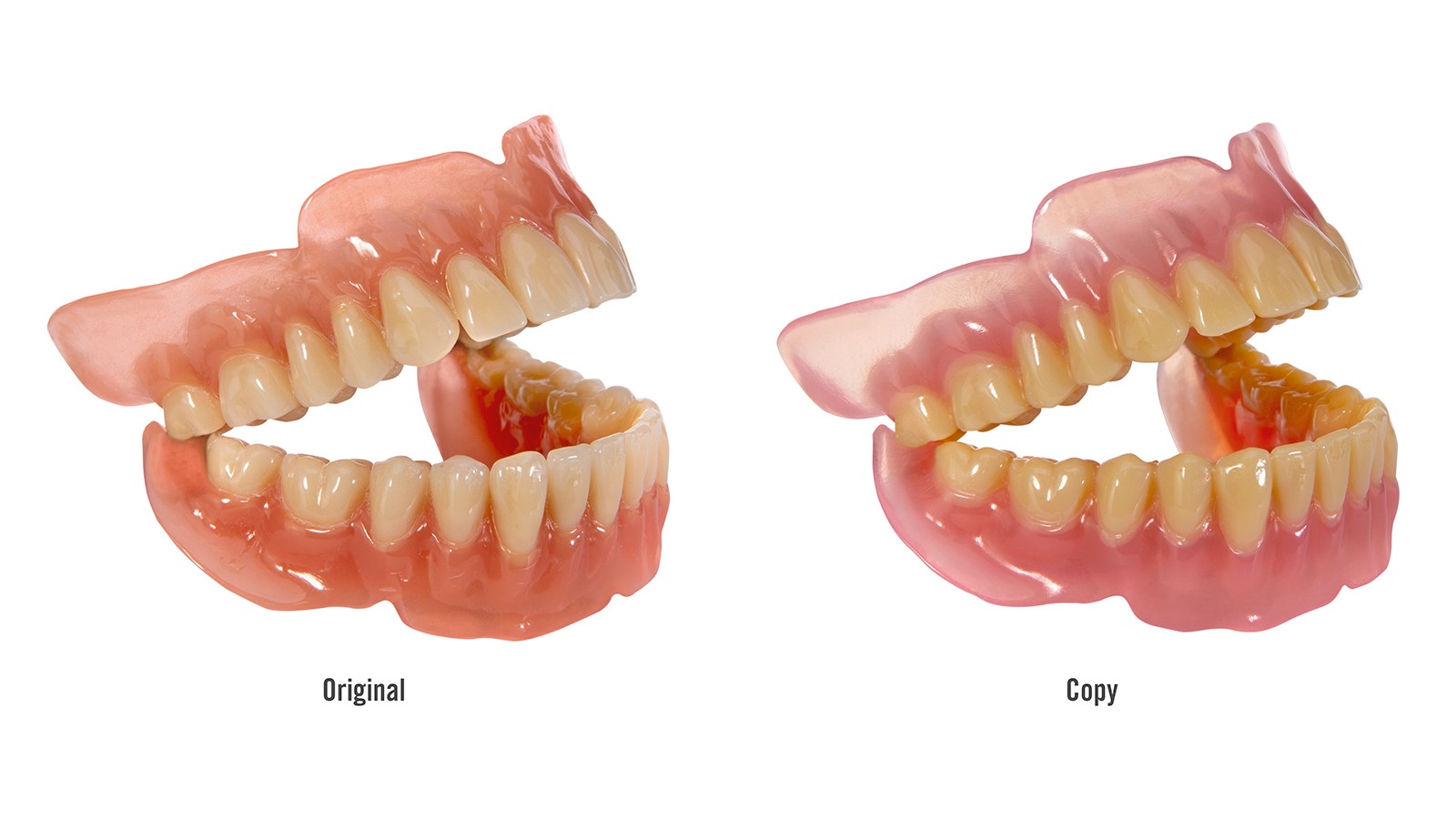

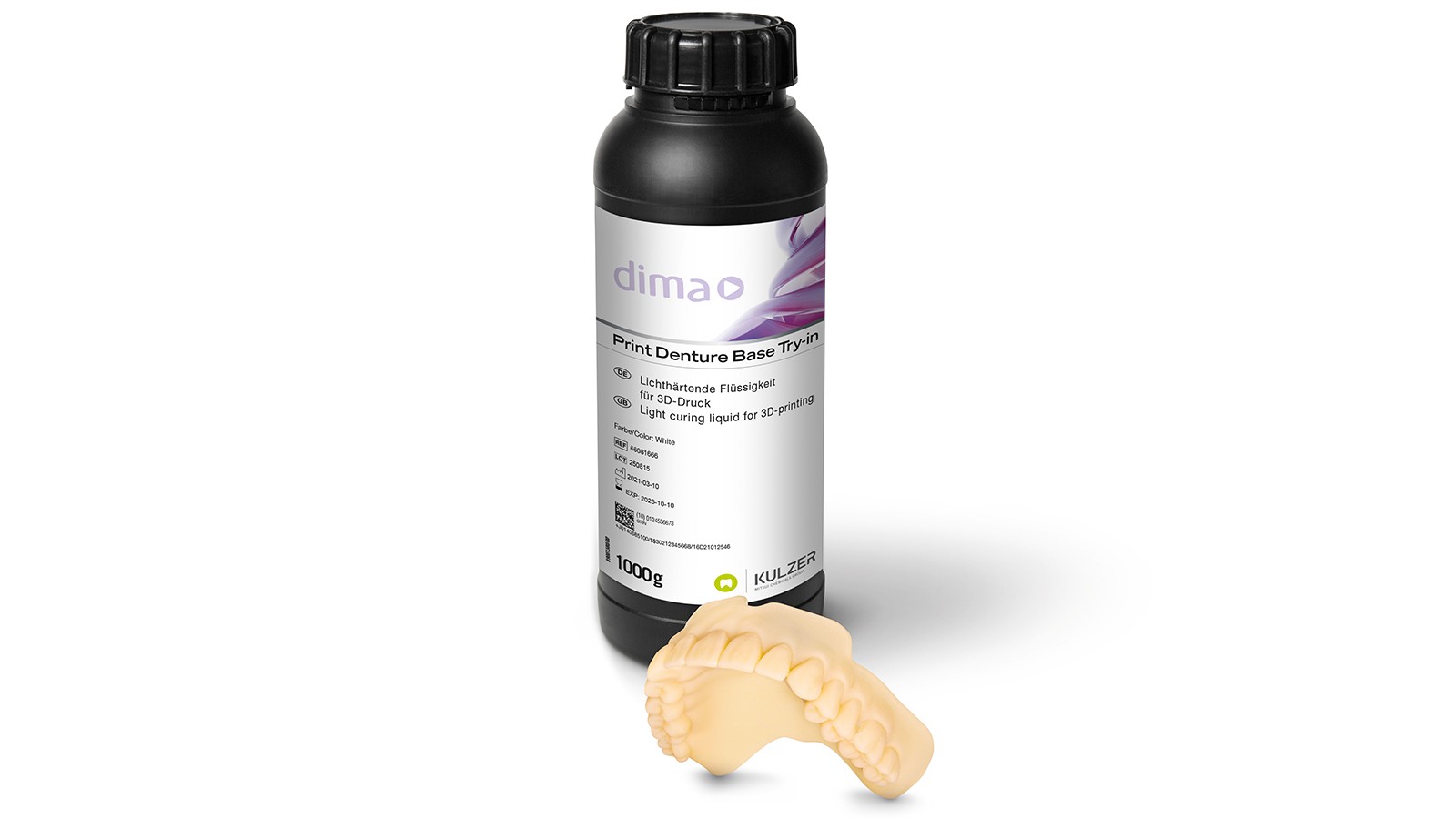

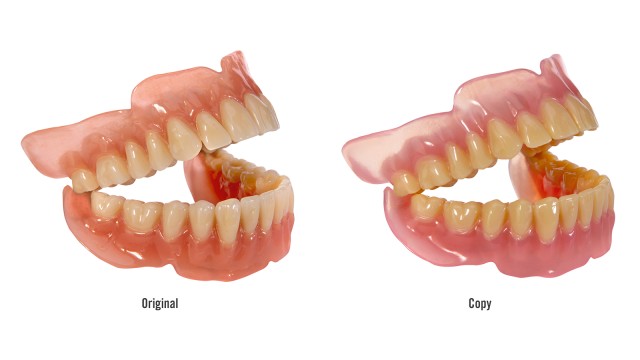

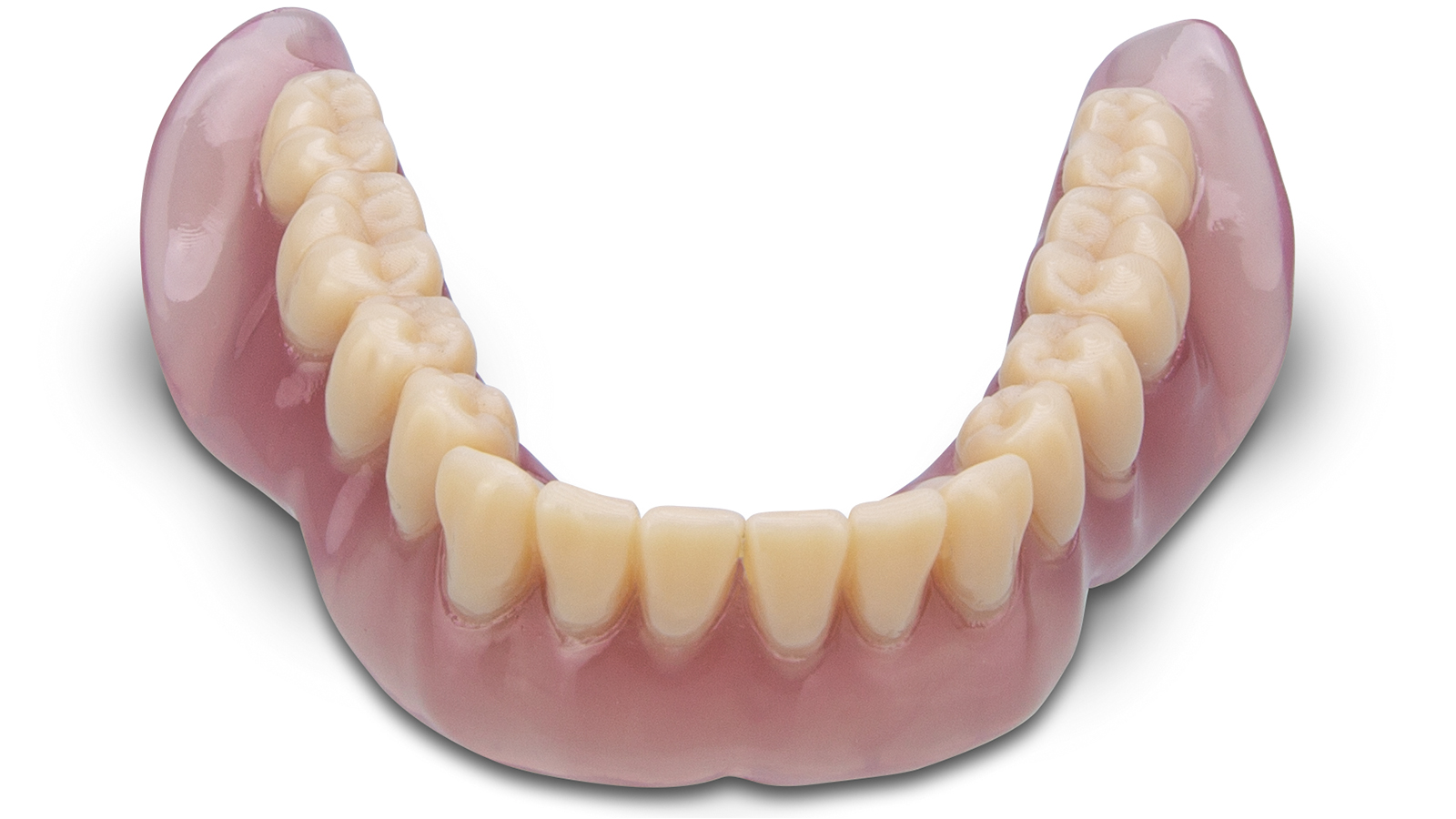

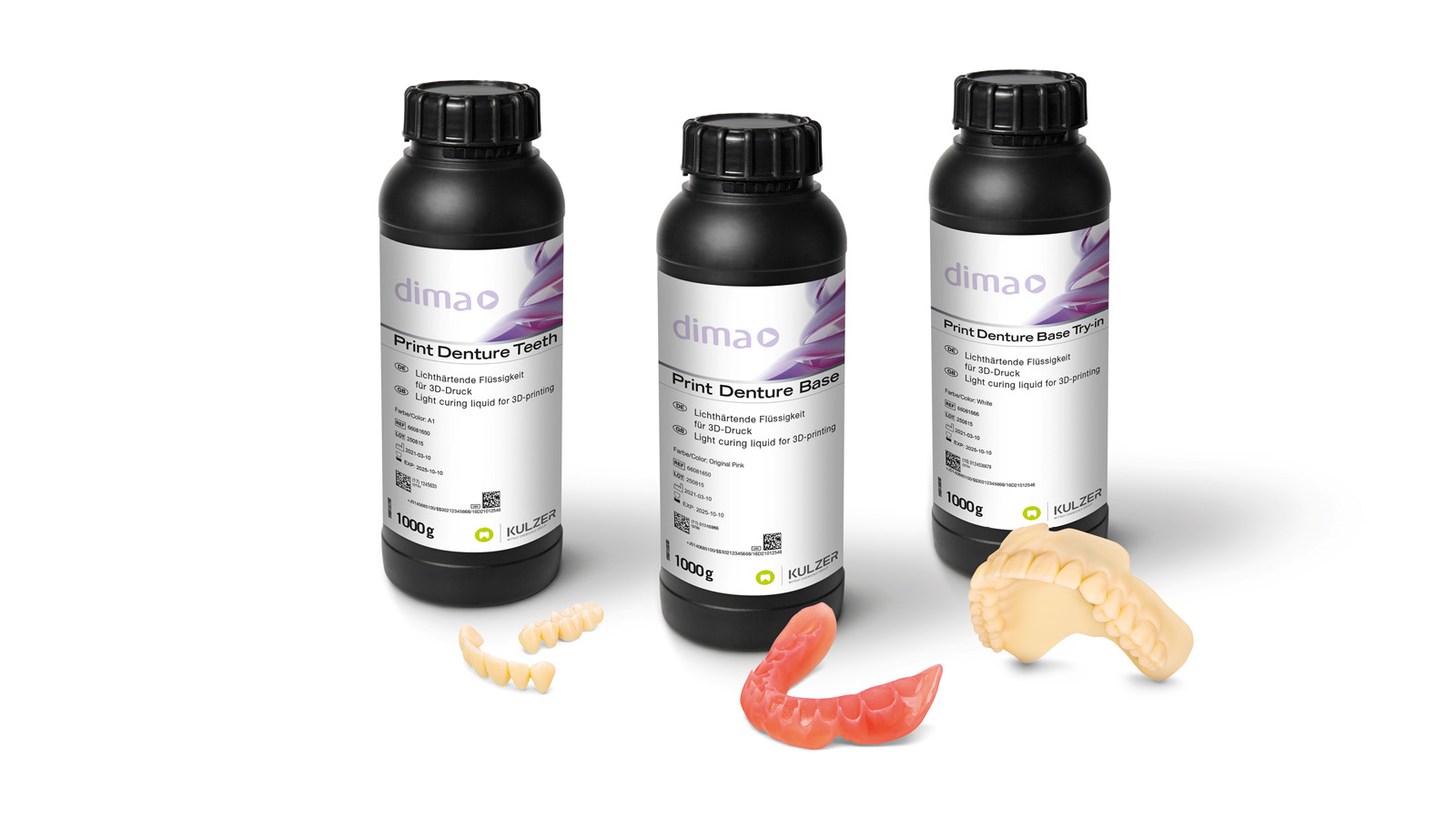

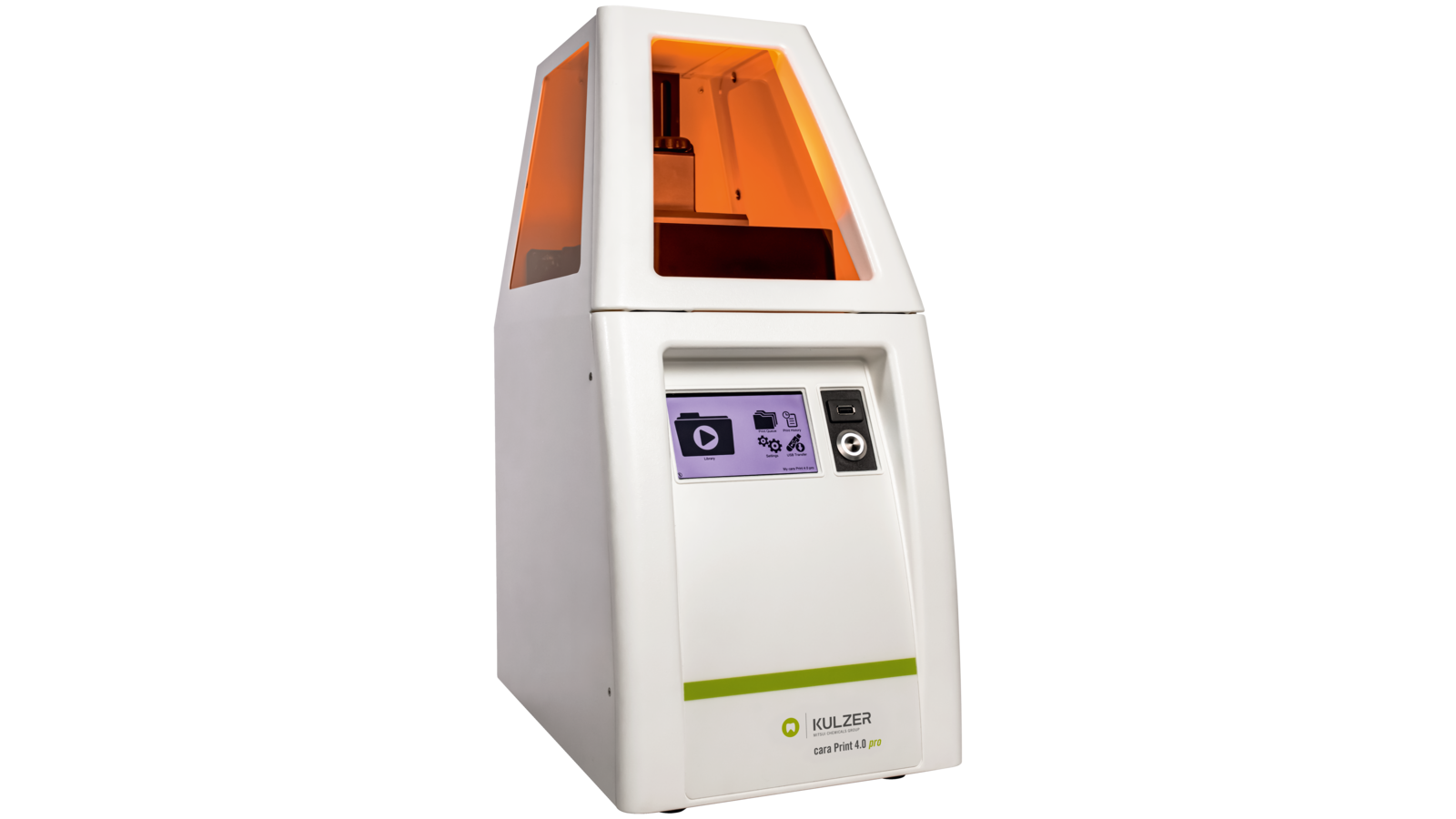

With dima Print Digital Denture, technicians can fully produce a good quality back-up denture using the fast and secure cara 3D printing workflow. The digital denture solution consists of three class IIa materials: dima Print Denture Base Try-in for the production of Try-ins, as well as dima Print Denture Teeth and dima Print Denture Base for the production of high quality duplicate dentures with multiple shade options.
„…the materials and system improve both the workflow and the treatment process for patients. Users can make the design and printed denture by themselves and everyone can use the system thanks to its easy operation.” - Dr. Fumiaki Yamazaki, Imizu City, Toyama Prefecture, Japan
Dr. Fumiaki Yamazaki established the Yamazaki Dental Clinic in 2002 in Imizu City, Toyama Prefecture, Japan. He travels extensively as a trainer and lecturer and is a member of the Japan Plate Denture Association. In 2013, his PhD dissertation was awarded as the best dissertation by the Academy of Clinical Dentistry
MDD class | Color | Flexural Strength (Mpa) | Flexual Modulus (Mpa) |

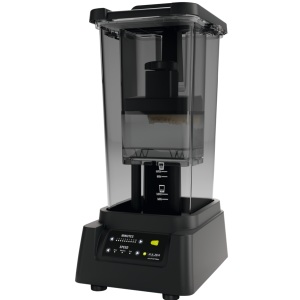

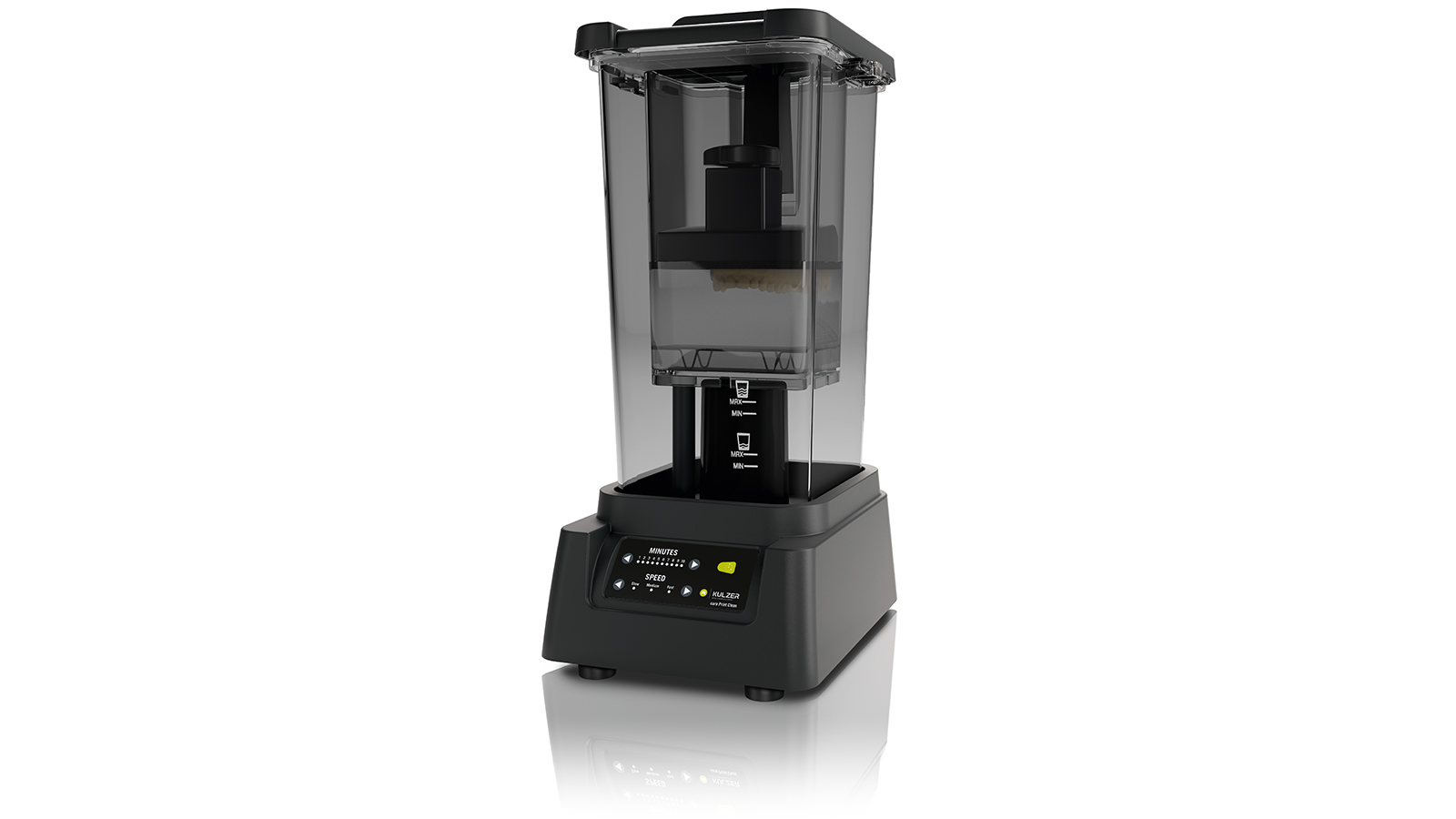

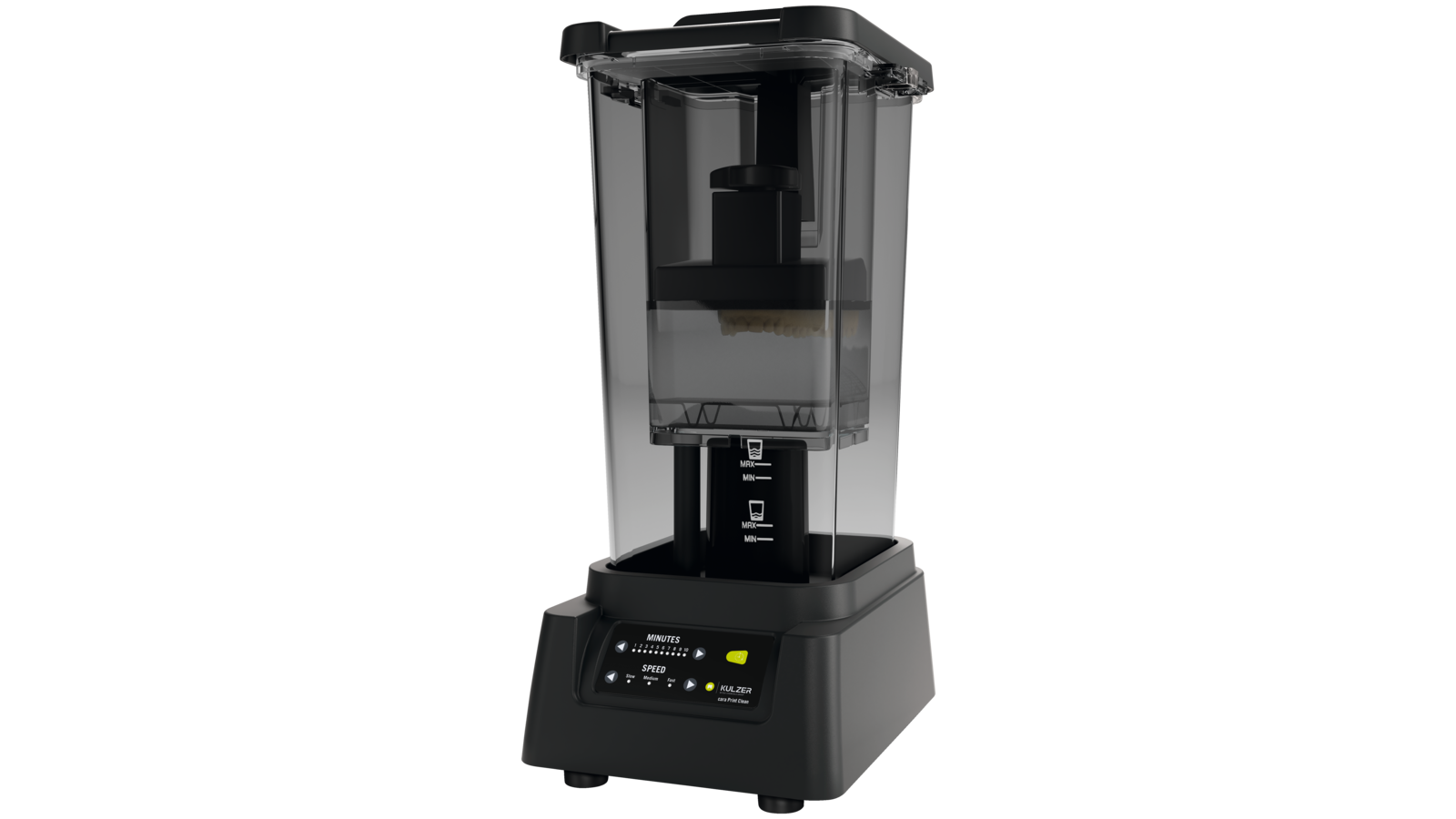

Cleaning time in isopropanol cara Print Clean |
Post-curing time HiLite Power 3D |

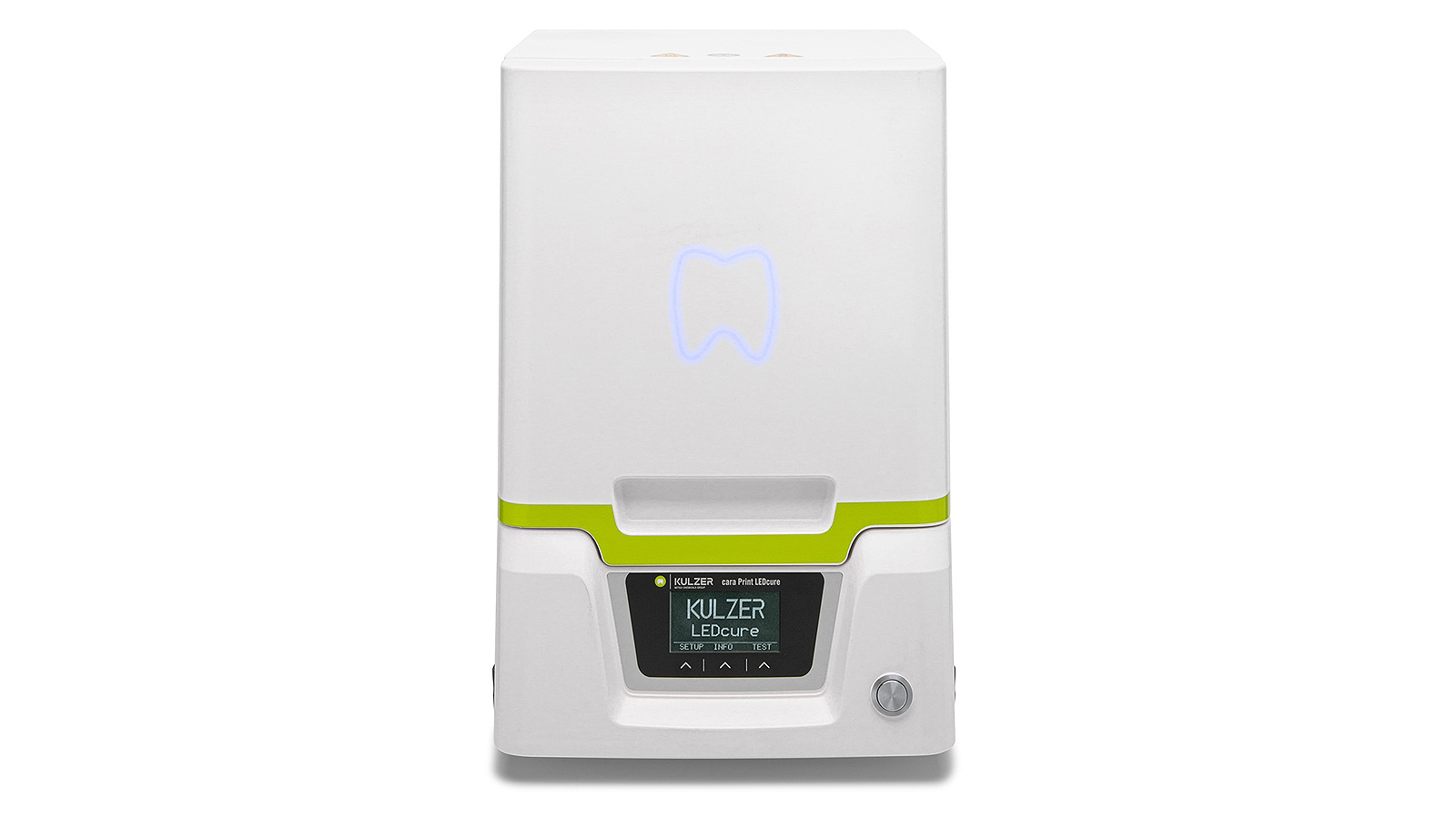

Post-Curing time LEDcure (no turning of object necessary) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

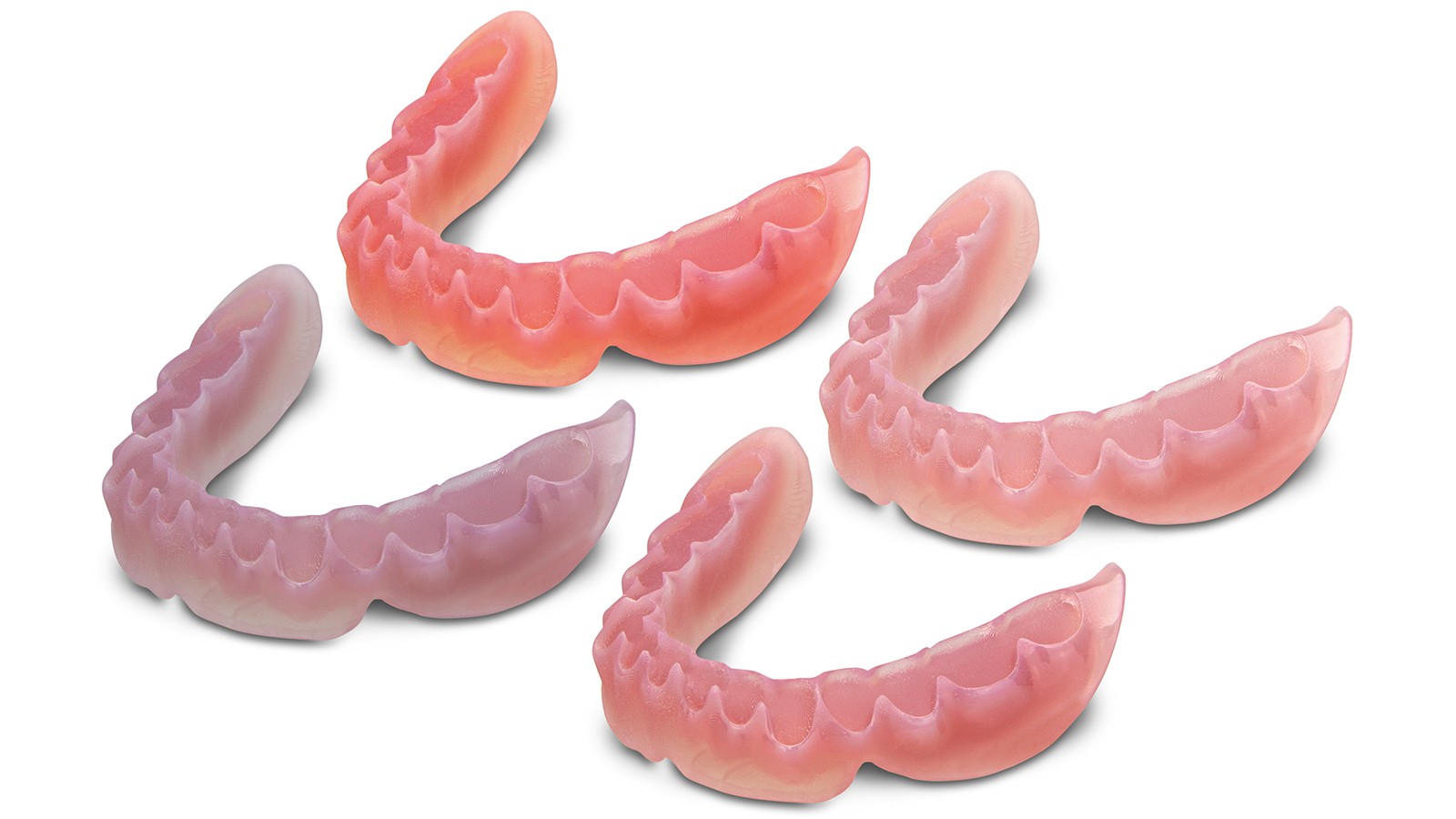

IIa | Light Reddish Pink, Light Pink, Original Pink, Dark Pink | > 65 | > 2000 |
pre-cleaning: 3 minutes post-cleaning: 2 minutes |
20 minutes (10 minutes front side +10 minutes reverse side) in Glycerin for combined Base&Teeth |
Denture program, cure in Glycerin for the chosen teeth color |
Example | Build height [mm] | Time [min] for 50 µm resolution | Time [min] for 100 µm resolution | Material consumption [ml] | Avg. material costs/part [€] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Denture base one upper arch |
1101 | - | 58 | 17.98 | 5.98 | |||||||||
Denture base one lower arc |
1189/1108 | - | 56 | 20.09/17.80 | 5.98 |
MDD class | Color | Flexural Strength (Mpa) | Flexual Modulus (Mpa) |
Cleaning time in isopropanol cara Print Clean |
Post-curing time HiLite Power 3D |
Post-Curing time LEDcure (no turning of object necessary) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

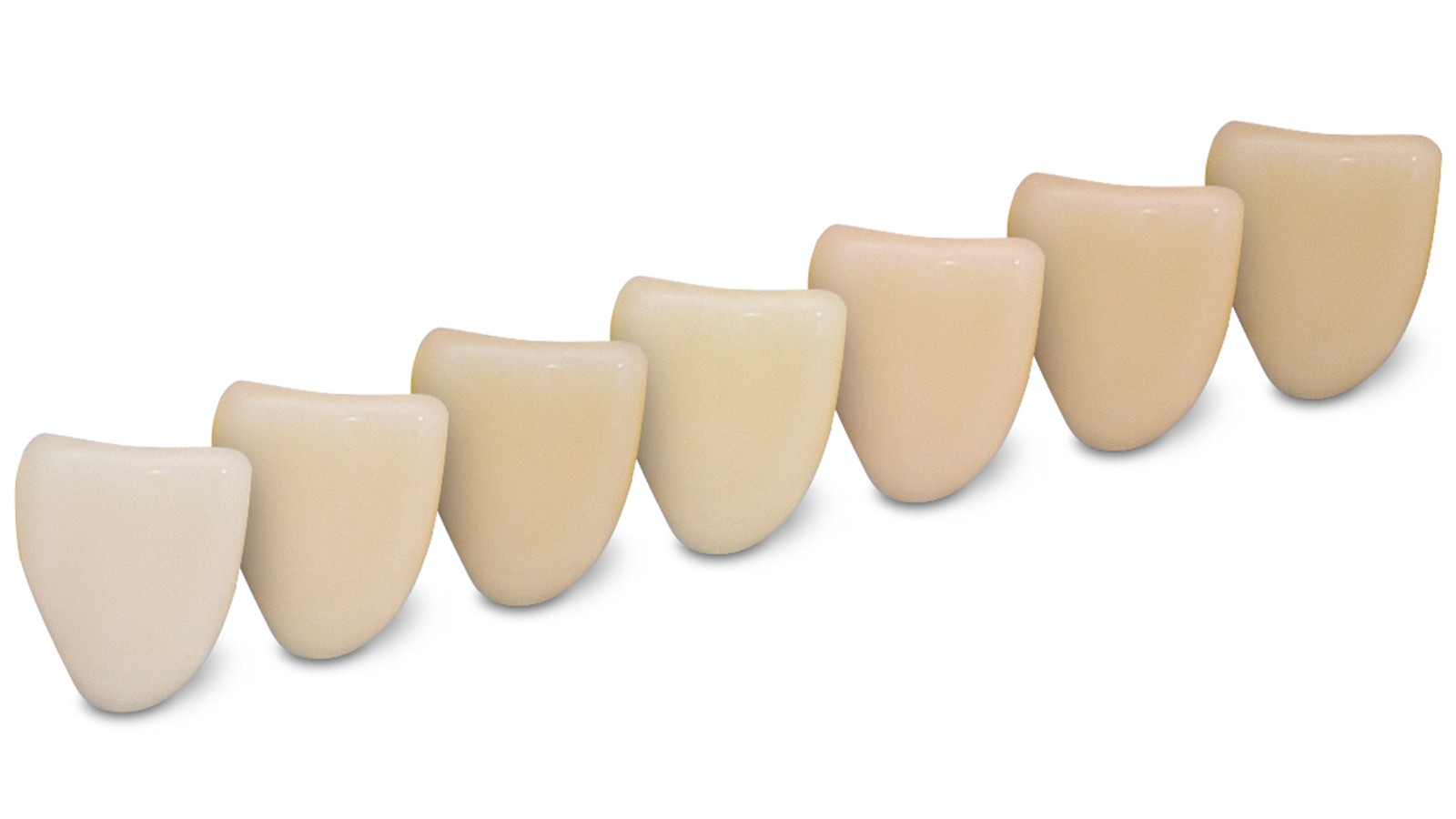

IIa | A1, A2, A3, A3.5, B1, B2, BL1 | > 50 | > 100 |
pre-cleaning: 3 minutes post-cleaning: 2 minutes |
20 minutes (10 minutes front side +10 minutes reverse side) in Glycerin for combined Base&Teeth |
Denture program, cure in Glycerin for the chosen teeth color |
Example | Build height [mm] | Time [min] for 50 µm resolution | Time [min] for 100 µm resolution | Material consumption [ml] | Avg. material costs/part [€] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

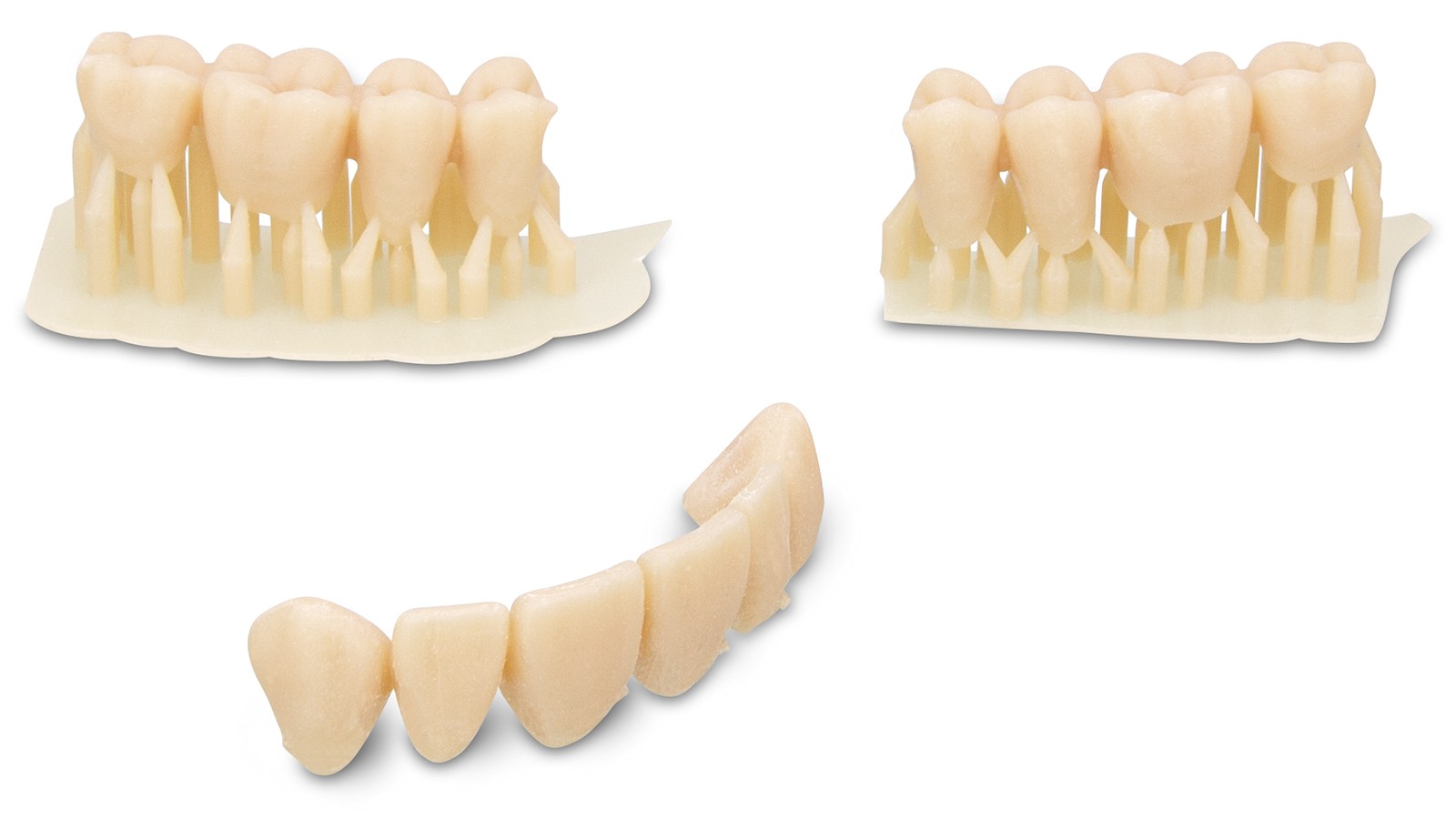

Denture teeth one upper arch |
1650 | 26 | - | 7.11 | 2.35 | |||||||||
Denture Teeth one lower arch |
1650 | 25 | - | 6.82 | 2.35 |
MDD class | Color | Flexural Strength (Mpa) | Flexual Modulus (Mpa) |
Cleaning time in isopropanol cara Print Clean |
Post-curing time HiLite Power 3D |
Post-Curing time LEDcure (no turning of object necessary) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IIa | White | > 65 | > 2000 |
pre-cleaning: 3 minutes post-cleaning: 2 minutes |
20 minutes (10 minutes front side +10 minutes reverse side) in Glycerin |
Try-in program, cure in Glycerin |
Example | Build height [mm] | Time [min] for 50 µm resolution | Time [min] for 100 µm resolution | Material consumption [ml] | Avg. material costs/part [€] | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

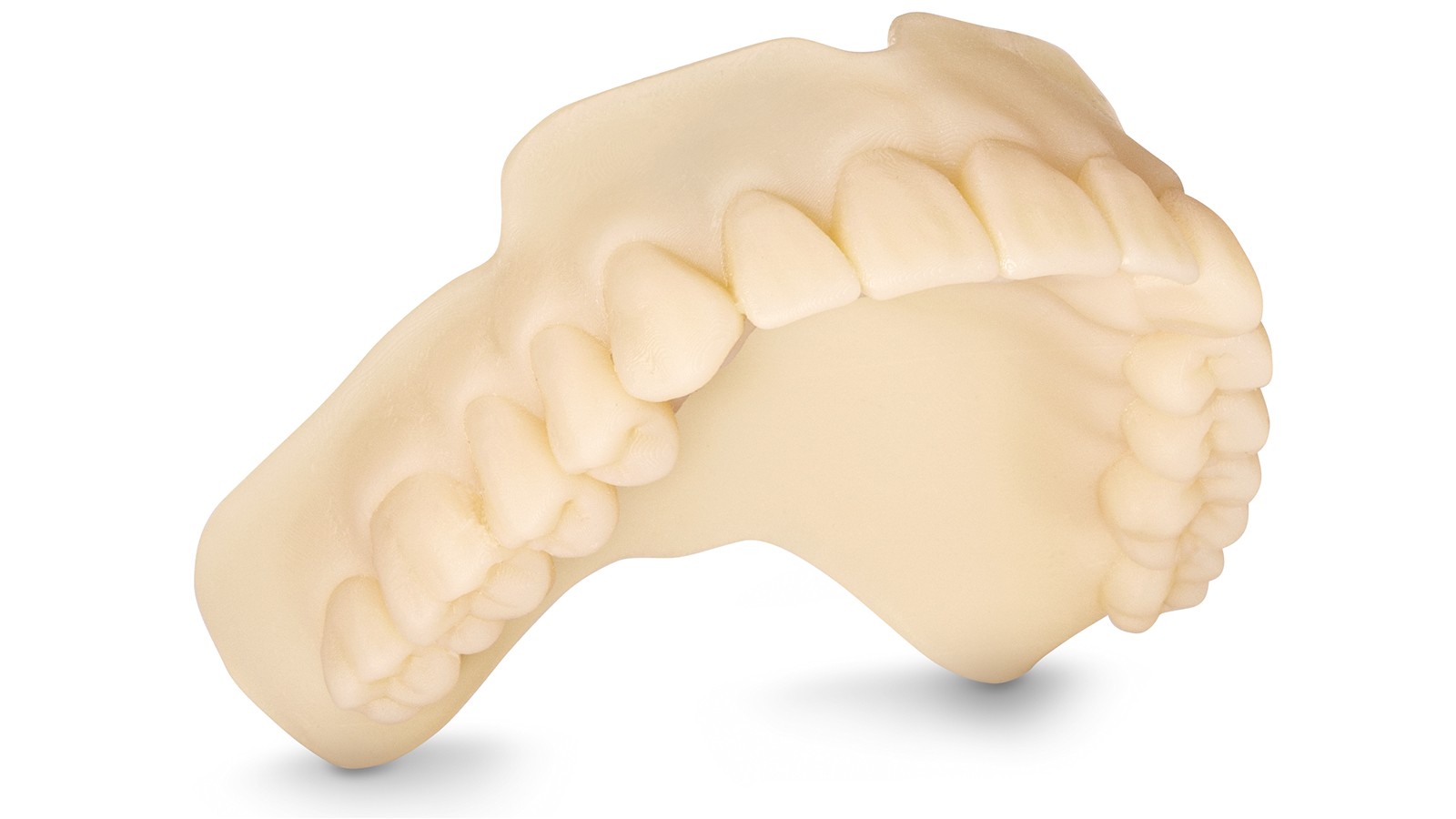

Try-in one upper arch |
1147 | - | 43 | 26.24 | 8.92 | |||||||||
Try-in one lower arch |
1130 | - | 42 | 18.20 | 8.92 |
